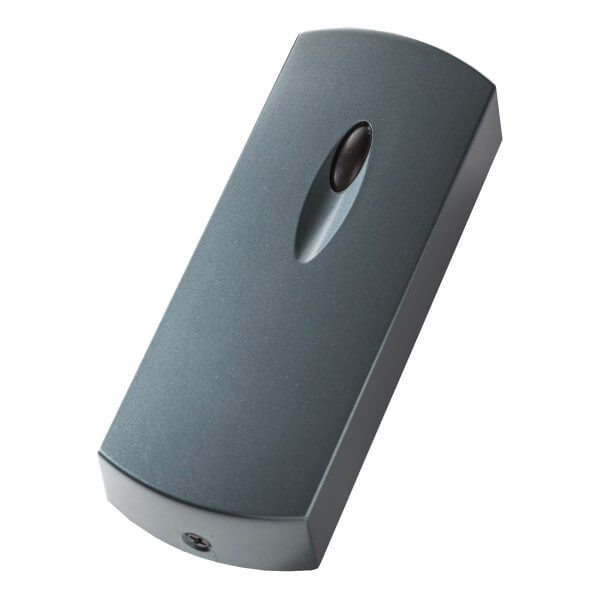

Matrix III EH

Matrix III EH RFID reader is designed for using in the network and standalone access control systems. Matrix III EH reader supports EM Marine and HID ProxCard II 125KHz keys and connects to the controllers via iButton (1-Wire) or Wiegand-26 protocol.

Matrix III EH reader automatically detects keys standard for simultaneous using of EM Marine and HID ProxCard II keys. There is a possibility of external control of visual and sound indication without additional connections.

  • Purpose ACS reader
    Operating frequency 125 KHz
    Key types RFID (Proximity)
    Reader standard EM Marine, HID ProxCard II
    Reader protocol iButton (1-Wire), Wiegand-26
    RFID reading range (cm) 2–6
    Keypad No
    Anti-vandal case No
    Waterproof and dustproof case Yes
    Keys copying protection No
  • iButton (1-Wire) maximum line length (m) 15
    Wiegand maximum line length (m) 100
    Voltage 12 DC
    Current consumption (mA) 35
    Bleeper Buzzer
    Visual indication 1 x 2-colored LED
    External control of LEDs and buzzer Yes
    Operating temperature (°C) -30...+40
    Case material ABS polymer
    Dimensions (mm) 120х45х22
