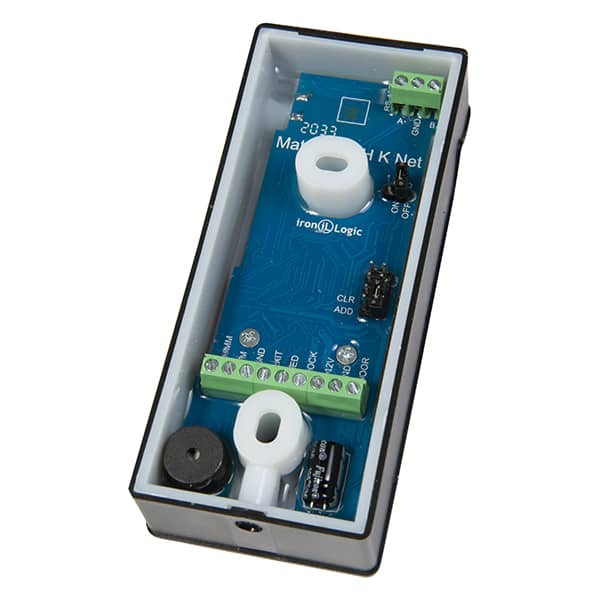

Matrix VI EH Net
Matrix VI EH Net network controller is designed for using in the online and offline access control systems. It's designed for managemanet of the electromagnetic and electromechanical locks, turnstiles (2 x Matrix VI EH Net controllers required). The controller provides power control functionality. Matrix VI EH Net controller is easy to install and maintain.
There is a possibility to connect Matrix VI EH Net controller to the PC via USB or Ethernet/Internet network using Z-397 Guard USB/RS-485 (Z-397 Guard USB/RS-485/RS-422) or Z-397 Web converters respectively. This makes it possible to build a complete network access control system with a time tracking, event control and report building based on the software solutions.
Matrix VI EH Net controller allows you to connect external reader or exit button, electromagnetic or electromechanical lock, external buzzer, external LED, door opening sensor.
-
Purpose Lock, Power Control Controller type Network Connection types RS-485 RS-485 lines count 1 RS-485 connection speed 19200 Kbps, 57600 Kbps RS-485 maximum line length (m) 1200 Keys count 2024 Types of recordable keys Normal, Master, Blocking Events count 2048 Key types RFID (Proximity) External readers protocol iButton (1-Wire), Wiegand-26, Wiegand-34, Wiegand-42, Wiegand-50 Operating modes (basic) Normal, Blocking, Free, Wait Operating modes (advanced) Accept, Trigger, Power Pocket Access point types Door, Turnstile Actuator types Electromagnetic, Electromechanical, Turnstile Built-in reader Yes Built-in reader operating frequency 125 KHz Built-in reader standard EM Marine, HID ProxCard II Built-in reader reading range (cm) 2–4 -
External readers indication output 1 x 2-colored LED Additional power output for external readers No Non-volatile memory (EEPROM) Yes Voltage 8–24V DC Current consumption (mA) 45 Bleeper Buzzer Visual indication 1 x 3-colored LED Electromagnetic lock opening duration (s) 0–25.5 Electromechanical lock opening duration (s) 0–25.5 MIS transistors count 1 MIS transistors maximum current (A) 5А Invalid connection protection Yes Operating temperature (°C) -40...+85 Case material ABS polymer Dimensions (mm) 110х47х18 -
