Z-5R Relay Wiegand

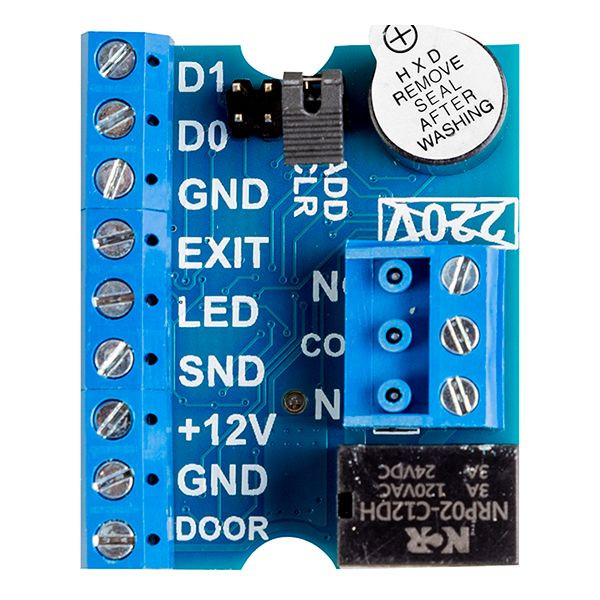

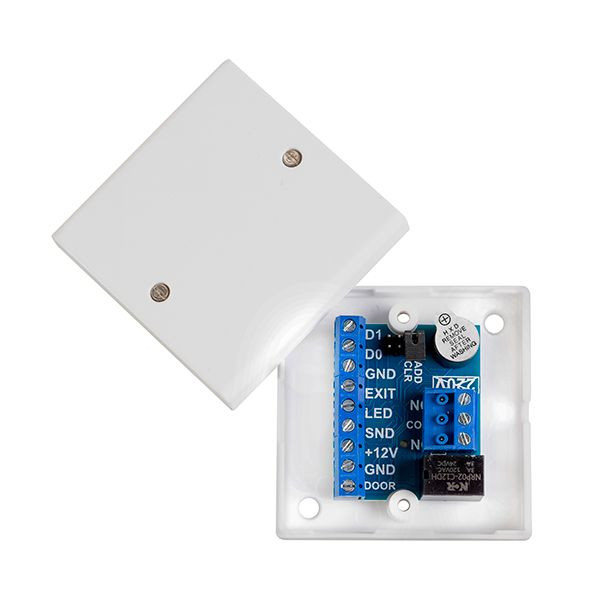

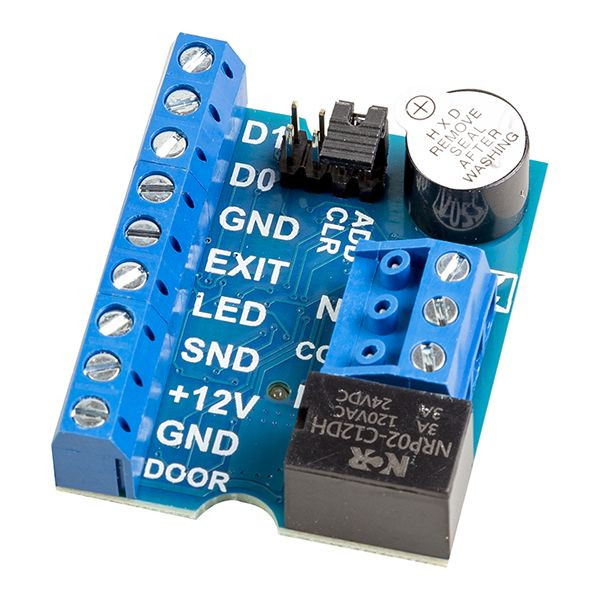

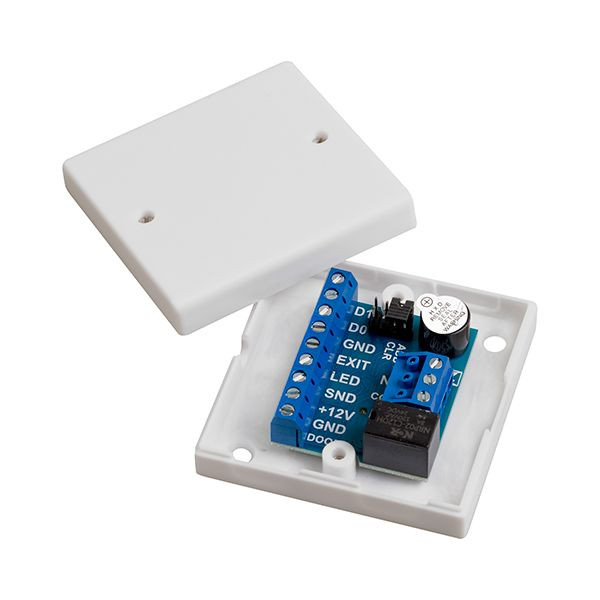

Z-5R Relay Wiegand is the standalone controller designed for management of the lock using relay. Controller dimensions allows to install it inside the lock as a board, as well as separately in the case. Z-5R Relay Wiegand operates with iButton DS1990A keys and RFID cards, keyfobs and wristbands using any reader which supporting iButton (1-Wire) or Wiegand 26...42 protocols.

Z-5R Relay Wiegand controller allows to connect the reader, lock opening button, door opening sensor, relay controlled lock, external LED, external buzzer.

  • Purpose Lock
    Controller type Standalone
    Keys count 1364
    Types of recordable keys Normal, Master, Blocking
    External readers count 1
    External readers protocol iButton (1-Wire), Wiegand-26, Wiegand-34, Wiegand-37, Wiegand-40, Wiegand-42
    Operating modes (basic) Normal, Blocking
    Operating modes (advanced) Accept, Trigger, Relay
    Access point types Door
    Actuator types Relay
  • Non-volatile memory (EEPROM) Yes
    Controller memory backup and restore using DS1996 key Yes
    Controller programming using adapter Yes
    Voltage 12V DC
    Current consumption (mA) 45
    Bleeper Buzzer
    Visual indication 1 x LED
    Duration of the power supply to the relay (s) 0–220
    Relay outputs count 1
    Relay outputs maximum current (A) 3
    Control of initial state of relay by jumper selection Yes
    Invalid connection protection Yes
    Operating temperature (°C) -30...+40
    Case material ABS polymer, No case
    Dimensions (mm) 46х35х15
