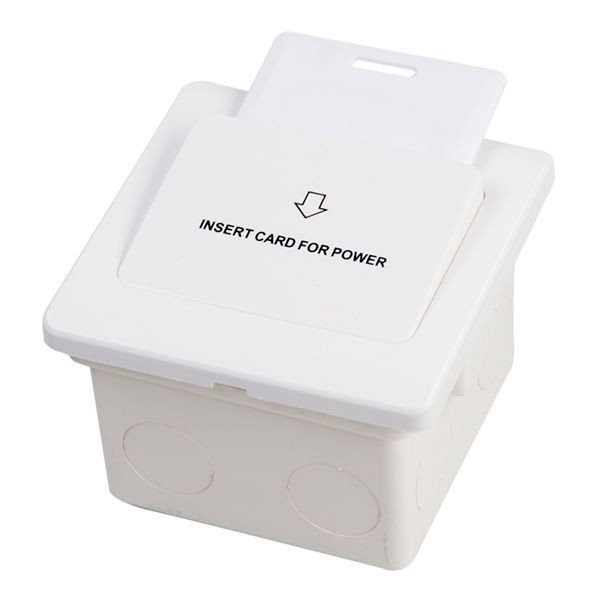

Matrix IV Hotel

Matrix IV Hotel is a standalone 220V power control controller with integrated EM Marine 125 KHz reader.

Matrix IV Hotel has a power relay with switching contact group. The controller is made in the waterproof case with the three  conductors for a power supply and the switching. The controller delivered with plastic pocket for the RFID cards.

All these features allow you to use Matrix IV Hotel controller at the objects where it's necessary to control the power supply: hotel rooms, dormitories, offices and houses, during repair work etc.

  • Purpose Power Control
    Controller type Standalone
    Key types RFID (Proximity)
    Operating modes (advanced) Power Pocket, Timer
    Built-in reader Yes
    Built-in reader operating frequency 125 KHz
    Built-in reader standard EM Marine
    Built-in reader reading range (cm) 1
  • Non-volatile memory (EEPROM) No
    Voltage 180–250V AC
    Backlight Blue LED continuous lighting
    Relay outputs count 1
    Relay outputs maximum current (A) 30
    Operating temperature (°C) +5...+40
    Case material ABS polymer
    Dimensions (mm) 86х86х40
