Matrix VI EH Web

9530
96.20 EUR
+
-
Add to order

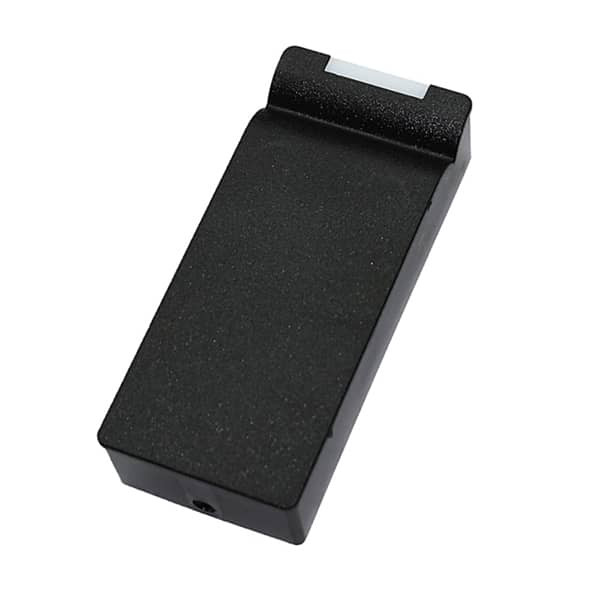

Matrix VI Web network controller is designed for using in the online and offline access control systems. It's designed for managemanet of the electromagnetic and electromechanical locks, turnstiles (2 x Matrix VI Web controllers required) and easy to install and maintain.

Matrix VI Web can be connected to LAN network using Wi-Fi connection, RS-485 network, directly to PC via USB port using Z-397 Guard USB/RS-485 (Z-397 Guard USB/RS-485/RS-422) converter, to wired Ethernet/Internet network (when Wi-Fi connection is unavailable) using Z-397 Web converter. This makes it possible to build a complete network access control system with a time tracking, event control and report building based on the software solutions.

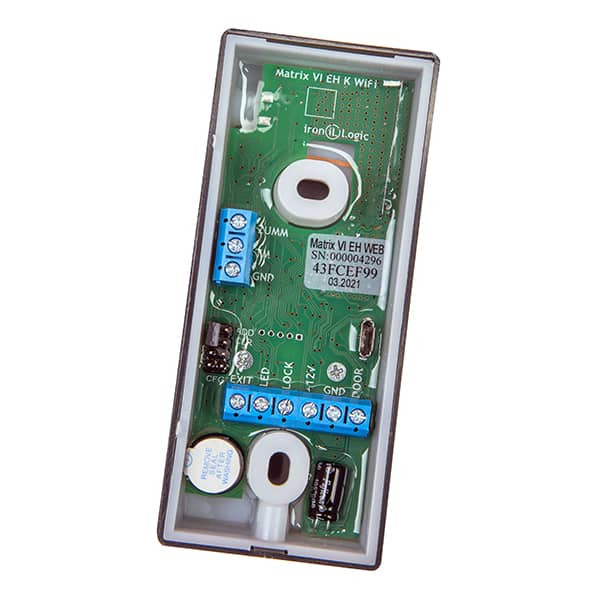

Matrix VI Web controller allows you to connect 2 external readers, reader and exit button, electromagnetic or electromechanical lock, external buzzer, external LED, door opening sensor.

  • Purpose Lock, Turnstile
    Controller type Network
    Connection types Wi-Fi
    RS-485 lines count 1
    Keys count 2024
    Types of recordable keys Normal, Master, Blocking
    Events count 2048
    Key types RFID (Proximity)
    External readers count 1
    External readers protocol iButton (1-Wire), Wiegand-26, Wiegand-34, Wiegand-42, Wiegand-50
    Operating modes (basic) Normal, Blocking, Free, Wait
    Operating modes (advanced) Accept, Trigger
    Access point types Door, Turnstile
    Actuator types Electromagnetic, Electromechanical, Turnstile
    Built-in reader Yes
    Built-in reader operating frequency 125 KHz
    Built-in reader standard EM Marine, HID ProxCard II
    Built-in reader reading range (cm) 2–4
  • External readers indication output 1 x 2-colored LED
    Additional power output for external readers No
    Ethernet protocol TCP, IP, ARP, SSH, ICMP, UDP, DHCP
    Wi-Fi standard IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
    Wi-Fi security algorithm WPA/WPA2, WPA-PSK, WPA2-PSK
    Wi-Fi connection speed 11 Mbps (802.11b), 54 Mbps (802.11g), 150 Mbps (802.11n)
    Wi-Fi operating mode Client
    Wireless output power (dBm / mW) <20dBm (<100mW)
    USB connection USB Type A
    Full speed
    Non-volatile memory (EEPROM) Yes
    Voltage 8–24V DC
    Current consumption (mA) 100
    Bleeper Buzzer
    Visual indication 1 x 2-colored LED
    Electromagnetic lock opening duration (s) 0–25.5
    Electromechanical lock opening duration (s) 0–25.5
    MIS transistors count 1
    MIS transistors maximum current (A)
    Invalid connection protection Yes
    Operating temperature (°C) -40...+85
    Case material ABS polymer
    Dimensions (mm) 110х47х23
