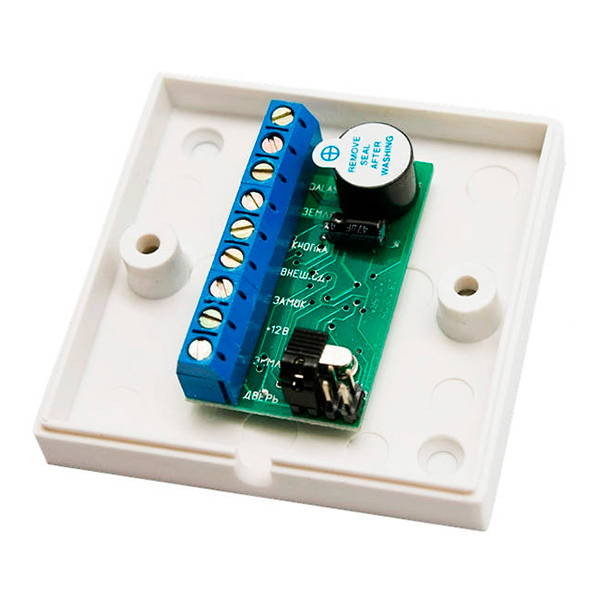

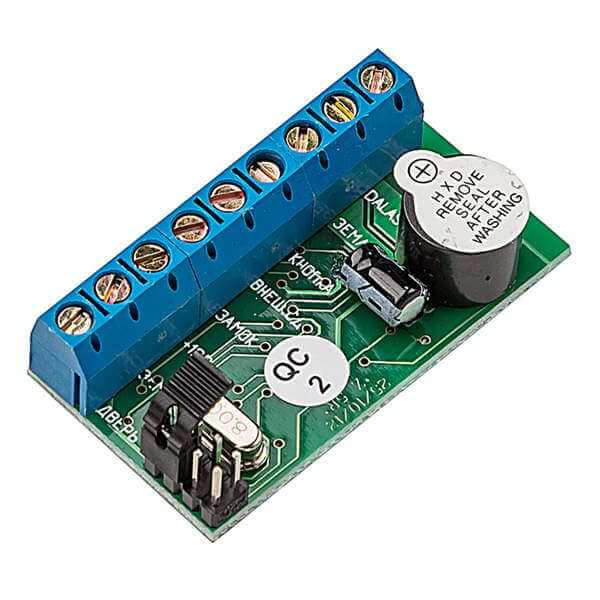

Z-5R is the standalone controller designed for management of the electromagnetic and electromechanical locks. Controller dimensions allows to install it inside the lock as a board, as well as separately in the case. Z-5R operates with iButton DS1990A keys and RFID cards, keyfobs and wristbands.

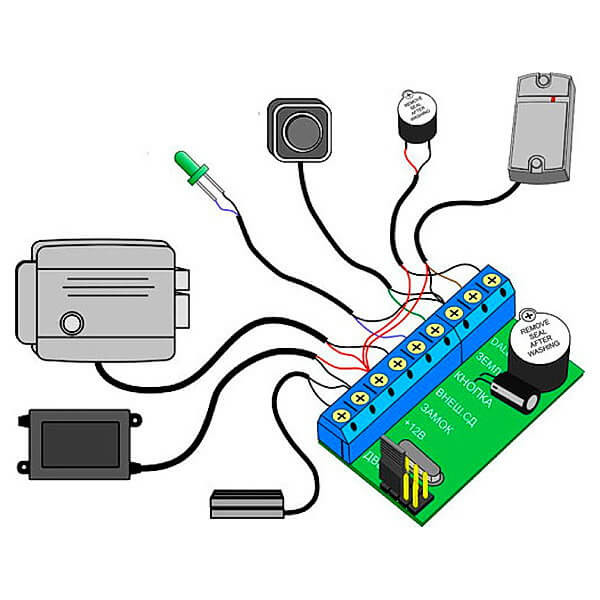

Z-5R controller allows to connect the reader, lock opening button, door opening sensor, electromagnetic or electromechanical lock, external LED, external buzzer.

  • Purpose Lock
    Controller type Standalone
    Keys count 1364
    Types of recordable keys Normal, Master, Blocking
    External readers count 1
    External readers protocol iButton (1-Wire)
    Operating modes (basic) Normal, Blocking
    Operating modes (advanced) Accept, Trigger
    Access point types Door
    Actuator types Electromagnetic, Electromechanical
  • Non-volatile memory (EEPROM) Yes
    Controller memory backup and restore using DS1996 key Yes
    Controller programming using adapter Yes
    Voltage 12V DC
    Current consumption (mA) 4
    Bleeper Buzzer
    Visual indication 1 x LED
    Electromagnetic lock opening duration (s) 0–220
    Electromechanical lock opening duration (s) 0–220
    MIS transistors count 1
    MIS transistors maximum current (A)
    Invalid connection protection Yes
    Operating temperature (°C) -40...+50
    Case material ABS polymer, No case

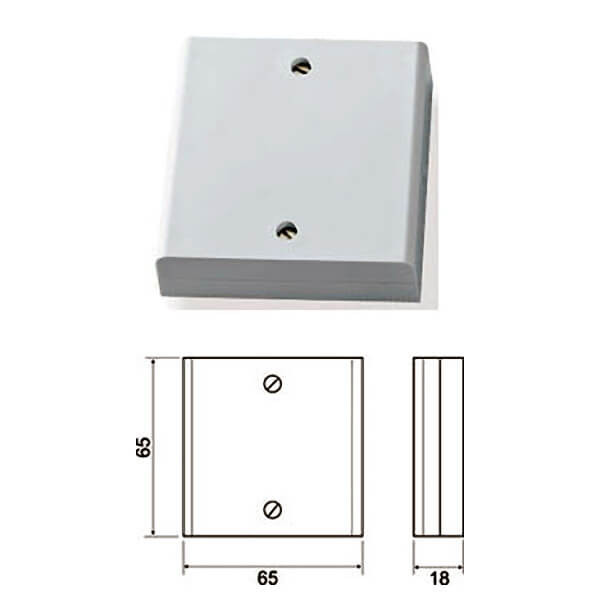

    Dimensions (mm) 65х65х18
