Z-5R Net

2065
65.56 EUR
+
-
Add to order

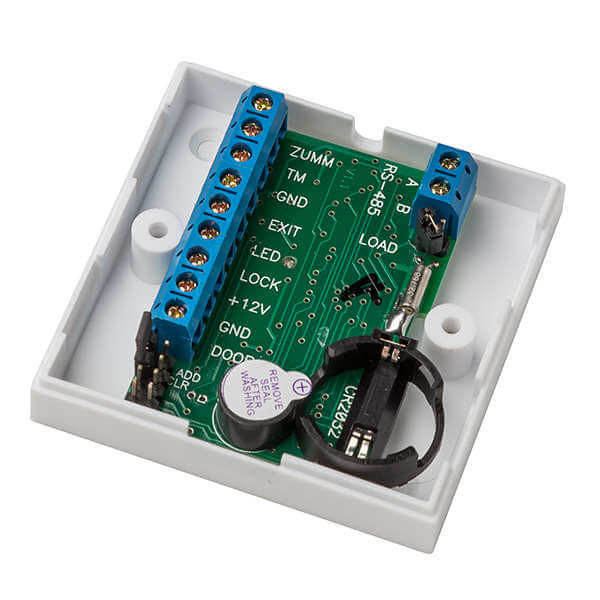

Z-5R Net network controller is designed for using in the online and offline access control systems. It's designed for managemanet of the electromagnetic and electromechanical locks, turnstiles (2 x Z-5R Net controllers required). The controller provides power control functionality. Z-5R Net controller is easy to install and maintain.

There is a possibility to connect Z-5R Net controller to the PC via USB or Ethernet/Internet network using Z-397 Guard USB/RS-485 (Z-397 Guard USB/RS-485/RS-422) or Z-397 Web converters respectively. This makes it possible to build a complete network access control system with a time tracking, event control and report building based on the software solutions.

Z-5R Net controller allows you to connect 2 readers, reader and exit button, electromagnetic or electromechanical lock, external buzzer, external LED, door opening sensor.

  • Purpose Lock, Turnstile, Power Control
    Controller type Network
    Connection types RS-485
    RS-485 lines count 1
    RS-485 connection speed 19200 Kbps, 57600 Kbps
    RS-485 maximum line length (m) 1200
    Keys count 2024
    Types of recordable keys Normal, Master, Blocking
    Events count 2048
    External readers protocol iButton (1-Wire)
    Operating modes (basic) Normal, Blocking, Free, Wait
    Operating modes (advanced) Accept, Trigger, Evacuation, Anti-Theft, Secure, Gateway
    Advanced features Double time zones, Key and PIN code access, 2 keys access
    Access point types Door, Gateway, Turnstile, Activator Lock (Gate)
    Actuator types Electromagnetic, Electromechanical, Turnstile
  • Non-volatile memory (EEPROM) Yes
    Voltage 12V DC
    Current consumption (mA) 30
    Bleeper Buzzer
    Visual indication 1 x LED
    Electromagnetic lock opening duration (s) 0–25.5
    Electromechanical lock opening duration (s) 0–25.5
    MIS transistors count 1
    MIS transistors maximum current (A)
    Invalid connection protection Yes
    Operating temperature (°C) –30...+40
    Case material ABS polymer
    Dimensions (mm) 65х55х12
