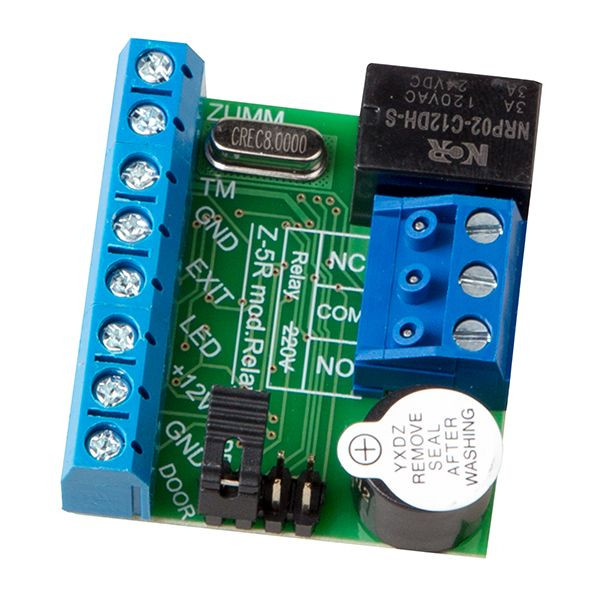

Z-5R Relay is the standalone controller designed for management of the lock using relay. Controller dimensions allows to install it inside the lock as a board, as well as separately in the case. Z-5R Relay operates with iButton DS1990A keys and RFID cards, keyfobs and wristbands.
Z-5R Relay controller allows to connect the reader, lock opening button, door opening sensor, relay controlled lock, external LED, external buzzer.
Purpose Lock Controller type Standalone Keys count 1364 Types of recordable keys Normal, Master, Blocking External readers count 1 External readers protocol iButton (1-Wire) Operating modes (basic) Normal, Blocking Operating modes (advanced) Accept, Trigger Access point types Door Actuator types Relay
Non-volatile memory (EEPROM) Yes Controller memory backup and restore using DS1996 key Yes Controller programming using adapter Yes Voltage 12V DC Current consumption (mA) 45 Bleeper Buzzer Visual indication 1 x LED Duration of the power supply to the relay (s) 0–220 Relay outputs count 1 Relay outputs maximum current (A) 3 Control of initial state of relay by jumper selection Yes Invalid connection protection Yes Operating temperature (°C) -30...+40 Case material ABS polymer, No case Dimensions (mm) 40х36х15
