Z-5R Web

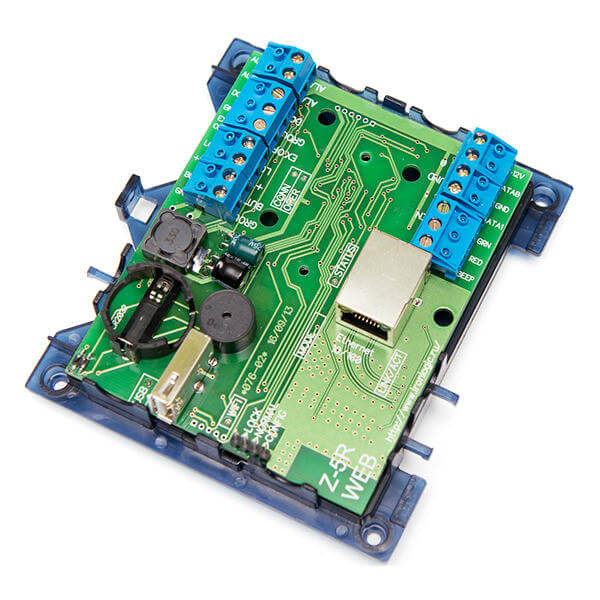

Z-5R Web controller is designed for using in the network and standalone access control systems. Z-5R Web is the controller with a changeable functionality determined during configuration. The logic of the controller operation may vary depending on the task. Turning the controller to Wi-Fi access point configuration mode allows you set up controller using smartphone.

Previously you needed separate type of controller for each solution, now you may purchase Z-5R Web controller and customize it for specific tasks. Detailed instructions, the minimum number of connections and connection to existing Ethernet networks provide ease of installation and maintenance. Due to the two MIS transistors Z-5R Web controller is perfect for management of the electromagnetic and electromechanical locks, turnstiles and barriers. Specific configurations provides connection to the activator lock which requiring a supply of different voltage polarity for opening and closing.

A separate fire input increases fire safety since the activation of fire alarm unlocks the passage regardless of connection with the PC, and security output provides a possibility integrate controller into existing security system.

A possibility connect to the network using Ethernet as well as Wi-Fi saves on installation of the communication network, and using 3G / 4G modem allows integration of remote objects in the access control systems controlled by the software.

  • Purpose Lock, Turnstile, Power Control
    Controller type Network
    Connection types Ethernet, Wi-Fi, 3G, 4G
    Ethernet connection speed 10 Mbps, 100 Mbps
    Ethernet maximum line length (m) 100
    Keys count 2 x 8168
    Types of recordable keys Normal, Master, Blocking
    Events count 8192
    External readers count 2
    External readers protocol iButton (1-Wire), Wiegand-26, Wiegand-34, Wiegand-42, Wiegand-50
    Operating modes (basic) Normal, Blocking, Free, Wait
    Operating modes (advanced) Accept, Evacuation, Anti-Theft, Secure
    Advanced features Double time zones, Key and PIN code access, 2 keys access
    Access point types Door, Gateway, Turnstile, Activator Lock (Gate)
    Actuator types Electromagnetic, Electromechanical, Turnstile
  • External readers indication output Red LED, Green LED, Sound
    Additional power output for external readers Yes
    Ethernet interface RJ45 (10/100BASE-T) Auto MDI/MDIX
    Ethernet standard Ethernet II (DIX v2.0), IEEE 802.3
    Ethernet protocol TCP, IP, ARP, SSH, ICMP, UDP, DHCP, HTTP
    Wi-Fi standard IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
    Wi-Fi security algorithm WEP (64,128, 152 bit), WPA/WPA2, WPA-PSK, WPA2-PSK
    Wi-Fi connection speed 11 Mbps (802.11b), 54 Mbps (802.11g), 150 Mbps (802.11n)
    Wi-Fi operating mode Access Point, Client
    Wireless output power (dBm / mW) <20dBm (<100mW)
    USB connection USB Type A
    USB operating mode Host
    Full speed High speed
    Non-volatile memory (EEPROM) Yes
    Voltage 12V DC
    Current consumption (mA) 300
    Bleeper Buzzer
    Visual indication 7 x LED
    Electromagnetic lock opening duration (s) 0–25.5
    Electromechanical lock opening duration (s) 0–25.5
    MIS transistors count 2
    MIS transistors maximum current (A) 5
    Fire alarm input Yes
    Security alarm output Yes
    Invalid connection protection Yes

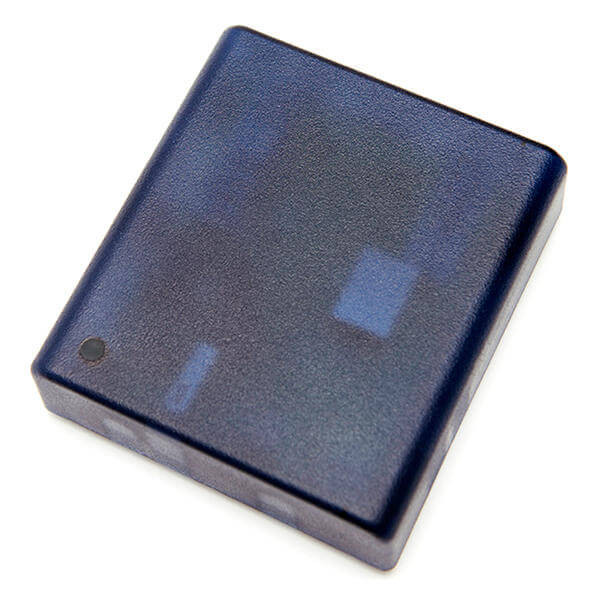

    Case material ABS polymer
    Dimensions (mm) 116x104x37
    Weight (g) 150
