Eurolock EHT Net

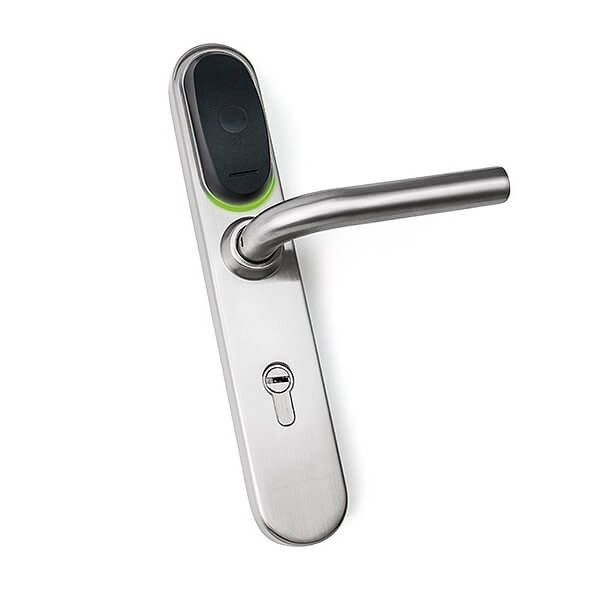

Eurolock EHT Net is the RFID reader and controller powered by 3 AAA-size 1.5V batteries; battery life time is more than 50 000 cycles (4 years max). After installing Eurolock EHT Net over the mechanical lock of DIN standard, access to your door become electronic.
It's necessary to bring the RFID key to lock reader for open the door from outside and it's enough to turn the door handle for open the door from inside.
The installation procedure of Eurolock EHT Net is the unmounting of old door handle and easy installation of Eurolock EHT Net with two screws on the door leaf instead of old door handle. Originality of Eurolock EHT Net is the possibility to use it on almost any existing door and a cost of installation and connection is 10 minutes.
Applying of Eurolock EHT Net allows you to create flexible access control system both the network mode via RS-485 network using software and the standalone mode using a master key for locks configuration.
- Office mode — the lock can be opened by keys saved in the lock controller database only. Features: free passage mode, blocking mode, switching the state open-closed by the internal clock of the lock. By using specialized software on the access card can be set additional restrictions on the time and day of the week.
- Hotel mode — it is intended for hotels, hostels, student campuses etc. It's allows you to create guest keys, staff and special-purpose keys with specific access rights and copying protection.
Purpose Door Controller type Network Operating frequency 125 kHz Reader standard EM Marine, Temic , HID ProxCard II Reader protocol iButton (1-Wire), Wiegand-26 Connection types RS-485, Micro USB Operating modes 2 Keys count 2024 Events count 2048
Power supply 3 x 1.5V AAA Batteries Emergency power supply Micro USB Non-volatile memory (EEPROM) Yes Reading range (cm) 2–4 Current consumption (µA) 30 Bleeper Buzzer Visual indication 1 x 3-colored LED Opening duration (s) 0–220 Operating temperature (°C) +5...+40 Case material Steel, Silumin Lock unit dimensions (mm) 280x50x20 Mounting Screws
