Z-595 iButton Keys

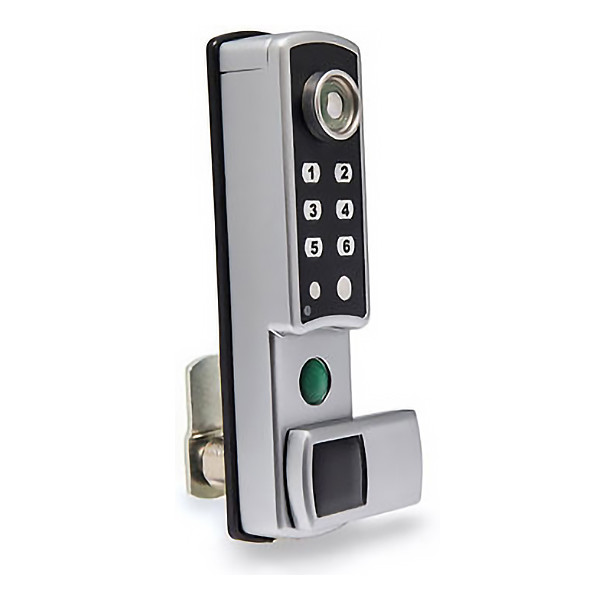

Z-595 ibutton Keys lock is the contactless reader and 6-keys keyboard combined with the standalone controller and electromechanical lock. Lock is powered by 1 x 9V PP3 battery. Z-595 ibutton Keys lock has a compact size, the internal clock, a big number of operation modes, ease of installation, programming and maintenance.

Z-595 ibutton Keys lock is access control solution for various storage locations: lockers, changing rooms, office furniture, business equipment. Z-595 ibutton Keys electronic lock has been widely used at the objects such as spas, water parks, fitness centers, swimming pools.

  • "Single user" mode is a common mode of lock controller operation. The lock may opened only by the keys or keyboard codes recorded in the lock memory (70 keys max).
  • "Multiuser" mode allows you not assign a specific key or keyboard code to the lock. Any key or keyboard code can be used with any free locker.
  • "Custom" mode is the mode intended for solution of the specific tasks. You may describe the desired operating mode then apply to our service for development of special firmware. Updating of the lock firmware is made using DS1996L key.
  • Purpose Locker
    Cam Lock compatibility Yes
    Controller type Standalone
    Operating frequency 125 kHz
    Reader standard iButton DS1990A, iButton DS1996L
    Operating modes 5
    Keys count 70
  • Master keys count 4
    Power supply 1 x 9V PP3 Battery
    Emergency power supply External power module
    Non-volatile memory (EEPROM) Yes
    Reading range (cm) 0
    Current consumption (µA) 1
    Bleeper Buzzer
    Visual indication 1 x 2-colored LED
    Operating temperature (°C) +5...+40
    Case material Steel, ABS polymer, Silumin
    Lock unit dimensions (mm) 150х40х30
    Mounting Screw and Screw-nut
