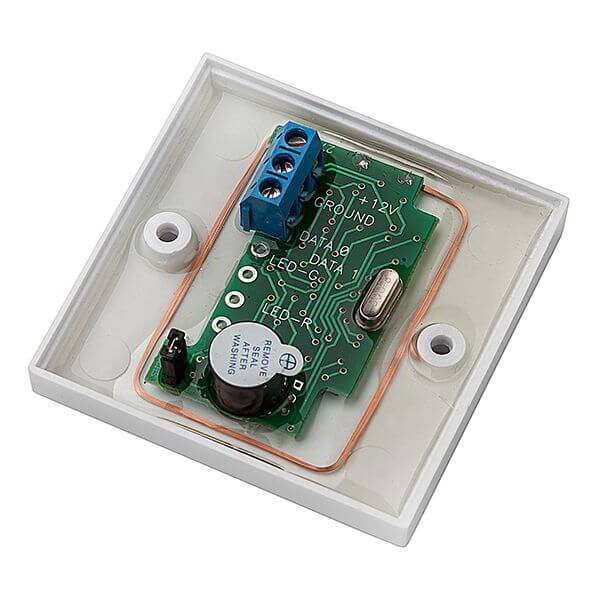

CP-Z RFID reader is designed for concealed installation both indoors and outdoors. Product specifications and design of the case provides the solid performance through the layer of plaster or drywall. CP-Z reader supports EM Marine 125KHz keys and connects to the controller via iButton protocol (1-Wire).

  • Purpose ACS reader
    Operating frequency 125 KHz
    Key types RFID (Proximity)
    Reader standard EM Marine
    Reader protocol iButton (1-Wire)
    RFID reading range (cm) 2–6
    Keypad No
    Anti-vandal case No
    Waterproof and dustproof case Yes
    Keys copying protection No
  • iButton (1-Wire) maximum line length (m) 15
    Voltage 8–18 DC
    Current consumption (mA) 20
    Bleeper Buzzer
    Operating temperature (°C) -30...+40
    Case material ABS polymer
    Dimensions (mm) 65х65х18
