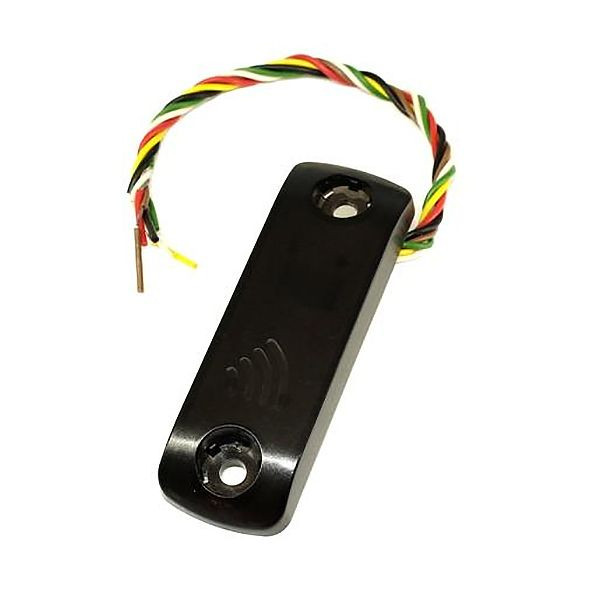

CP-Z 3E RFID reader is designed for using in the network and standalone access control systems. CP-Z 3E reader supports EM Marine and HID ProxCard II 125KHz keys and connects to the controllers via iButton (1-Wire) or Wiegand-26 protocol. CP-Z 3E reader automatically detects keys standard for simultaneous using of EM Marine and HID ProxCard II keys.

  • Purpose ACS reader
    Operating frequency 125 KHz
    Key types RFID (Proximity)
    Reader standard EM Marine, HID ProxCard II
    Reader protocol iButton (1-Wire), Wiegand-26
    RFID reading range (cm) 2–6
    Keypad No
    Anti-vandal case Yes
    Waterproof and dustproof case Yes
    Keys copying protection No
  • iButton (1-Wire) maximum line length (m) 15
    Wiegand maximum line length (m) 100
    Voltage 12 DC
    Current consumption (mA) 35
    Visual indication 1 x 2-colored LED
    External control of LEDs and buzzer No
    Operating temperature (°C) -30...+40
    Case material Polycarbonate
    Dimensions (mm) 78х26х10
