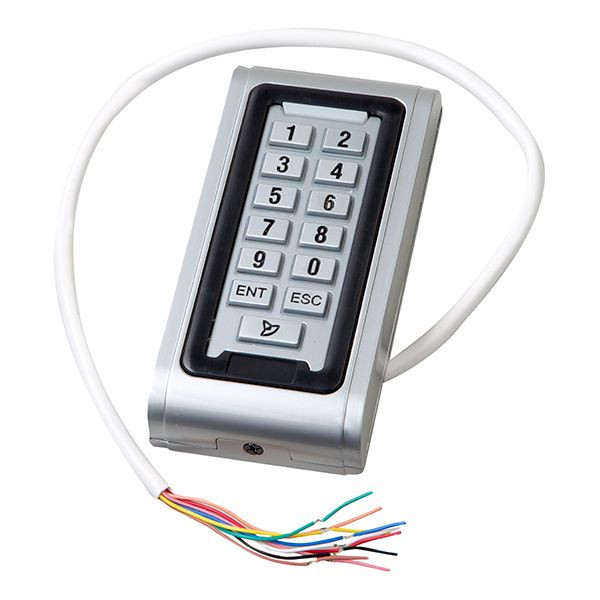

Matrix IV EHT Keys Metal
Matrix IV EHT Keys Metal RFID reader is designed for using in the network and standalone access control systems. Matrix IV EHT Metal is intended for access points where needed the control using RFID keys or keyless access by entering the PIN-code or both of them as well as anti-vandal case.
Matrix IV EHT Keys Metal reader supports EM Marine, HID ProxCard II 125KHz and Temic (T5557/T5577) keys and connects to the controllers via iButton (1-Wire), Wiegand-26 and Wiegand-42 protocols. The reader have clone protection of Temic T5557/T5577 keys (TM4301/05 chips) where EM Marine ID code was recorded (cloned).
Matrix IV EHT Keys Metal reader automatically detects keys standard for simultaneous using of EM Marine, HID ProxCard II and Temic keys. There is a possibility of external control of visual and sound indication without additional connections.
-
Purpose ACS reader Operating frequency 125 KHz Key types RFID (Proximity) Reader standard EM Marine, Temic, HID ProxCard II Reader protocol iButton (1-Wire), Wiegand-26, Wiegand-42 RFID reading range (cm) 2–6 Keypad Yes Anti-vandal case Yes Waterproof and dustproof case Yes Keys copying protection Yes Type of copying protection Read Temic ID instead of written EM Marine ID -
iButton (1-Wire) maximum line length (m) 15 Wiegand maximum line length (m) 100 Voltage 8–18 DC Current consumption (mA) 150 Bleeper Buzzer Visual indication 1 x 3-colored LED Backlight Yes External control of LEDs and buzzer Yes Operating temperature (°C) -30...+40 Case material ABS polymer, Silumin Dimensions (mm) 120х58х20
