IL-05T

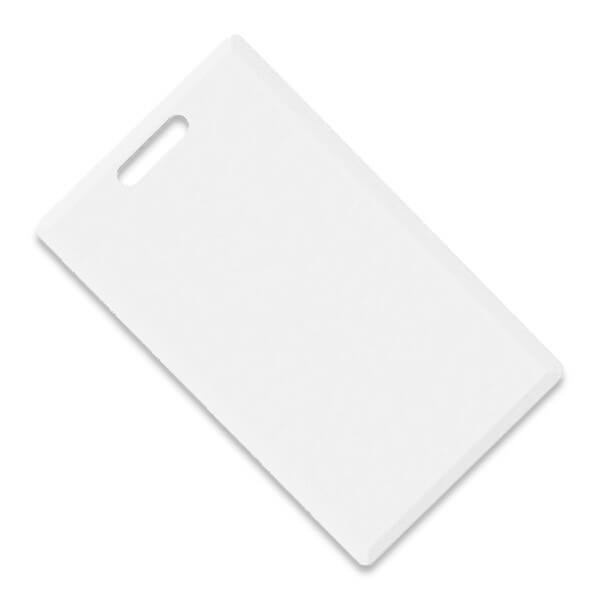

IL-05 Clamshell card ("thick") is the most simple, common and cheap proximity card for access control systems. The card has a slot to be worn on a lace, it protected against electromagnetic fields and static electricity. Personalization is done by sticker cards or by pouches and further lamination.

  • Standard Temic
    Chip ATA5577
    Operating frequency 125 KHz
    Functions Read, Write
    Printed number No
    Form factor Clamshell
    Printing features Pouch, Sticker card
    Memory size (bytes) 40
    Anticollision No
  • Operating temperature (°C) –30…+55
    Storage temperature (°C) –40…+75
    Material ABS polymer
    Dimensions (mm) 86х54х1.6
    Weight (g) 9 ± 0,5
