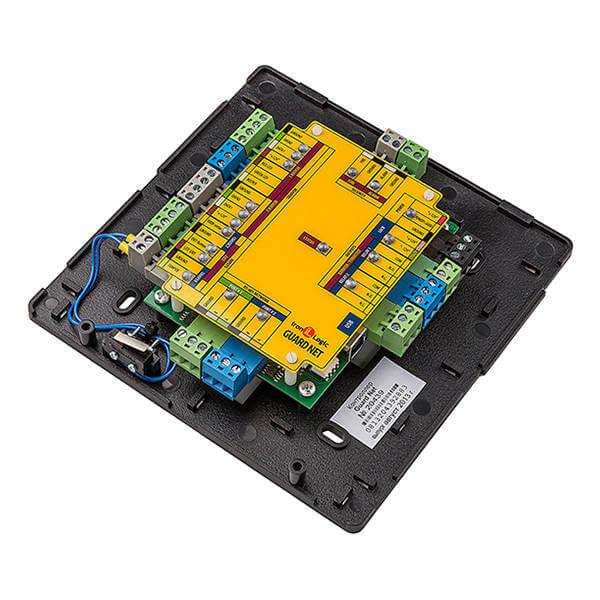

GUARD Net network controller is designed for using in the network and standalone access control systems. The controller has changeable functionality which is determined by the loaded firmware adjusted to the task. USB port allows you to configure the controller by simple editing of text configuration file. Previously you needed separate type of controller for each solution, now it's enough to get GUARD Net and install the firmware which is suiting for specific task.

Detailed instructions as well as the minimum conductors at the terminals provides ease of installation and maintenance. Due to the three actuators (one relay and two MIS transistors) GUARD Net controller is perfect for management of the electromagnetic and electromechanical locks, turnstiles and barriers. Specific configurations provides connection to the activator lock which requiring a supply of different voltage polarity for opening and closing.

A separate fire input increases fire safety since the activation of fire alarm unlocks the passage regardless of connection with the PC.

A second RS-485 port implemented within the GUARD Net controller as a galvanically isolated RS-485 line repeater. Thus the long network circuit may builded as a multiple short galvanically isolated segments. This greatly improves the interference protection and the software will take all the devices like connected to the same RS-485 line.

  • Purpose Lock, Turnstile, Barrier
    Controller type Network
    Connection types RS-485
    RS-485 lines count 2
    RS-485 connection speed 19200 Kbps, 57600 Kbps
    RS-485 maximum line length (m)
    Keys count 2 x 8168
    Types of recordable keys Normal, Master
    Events count 8192
    External readers count 1–8
    External readers protocol iButton (1-Wire), Wiegand-26
    Operating modes (basic) Normal, Blocking, Free, Wait
    Operating modes (advanced) Accept, Trigger, Evacuation, Anti-Theft, Secure, Gateway
    Access point types Door, Gateway, Turnstile, Activator Lock (Gate)
    Actuator types Electromagnetic, Electromechanical, Turnstile
  • Additional power output for external readers Yes
    USB operating mode Host
    Non-volatile memory (EEPROM) Yes
    Voltage 9–16V DC
    Current consumption (mA) 100
    Bleeper Buzzer
    Visual indication 19 x LED
    Relay outputs count 2
    Relay outputs maximum current (A) 25А (Type C)
    MIS transistors count 1
    MIS transistors maximum current (A)
    Fire alarm input Yes
    Security alarm input Yes
    Operating temperature (°C) -30...+40
    Case material ABS polymer
    Dimensions (mm) 150x150x30
