Matrix V

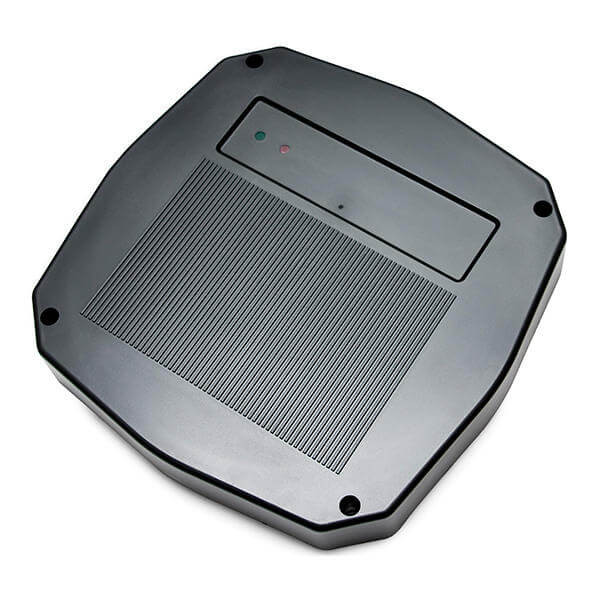

Matrix V Reader is designed for use in online and offline access control systems.

Matrix V reader supports simultaneous operation with RFID EM Marine 125 KHz long-range keys (eg IL-05 ELR cards) and IL-100 (Keeloq standard), TOP432NA and TOP434NA (CAME standard) remote controls.

Matrix V reader connecting to the ACS controller via iButton (1-Wire), Wiegand-26 or RS-485 protocols. There is a possibility of direct connection to PC via RS-485 protocol using Z-397 Guard USB/RS-485 converter.

  • Purpose ACS reader
    Operating frequency 125 KHz, 433 MHz
    Key types RFID (Proximity), Keeloq, CAME (TOP432NA, TOP434NA)
    Reader standard EM Marine, Keeloq, Came
    Reader protocol iButton (1-Wire), Wiegand-26, RS-485
    RFID reading range (cm) 0–10 (IL-05 ELR card)
    Keeloq reading range (m) 0–50 (IL-100, TOP432NA, TOP434NA remote control)
    Keypad No
    Anti-vandal case No
    Waterproof and dustproof case Yes
    Keys copying protection Yes
    Type of copying protection Keeloq Anti-clone (IL-100 remote control only)
  • iButton (1-Wire) maximum line length (m) 15
    Wiegand maximum line length (m) 100
    Voltage 12 DC
    Current consumption (mA) 500
    Bleeper Buzzer
    Visual indication 2 x LEDs (Red, Green)
    External control of LEDs and buzzer Yes
    Operating temperature (°C) -30...+40
    Case material ABS polymer
    Dimensions (mm) 230х230х35
